Form Factor Index
PCIe M.2 SSDs
PCIe M.2 drives are the most common SSDs in modern consumer devices, including dekstops, laptops, and handheld gaming PCs. The form factor allows for different lengths, ranging from 2230 to 22110, but most are 2280 (meaning 22mm by 80mm).
58 documented drives

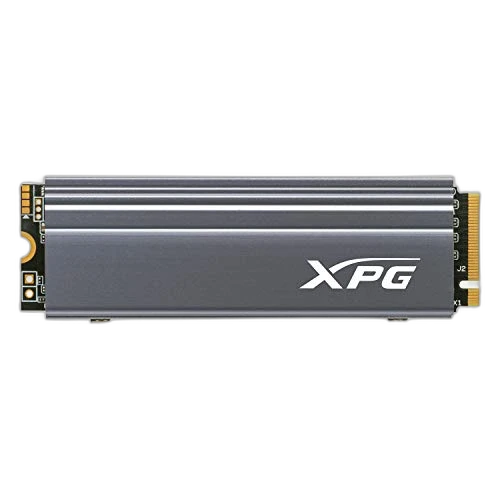

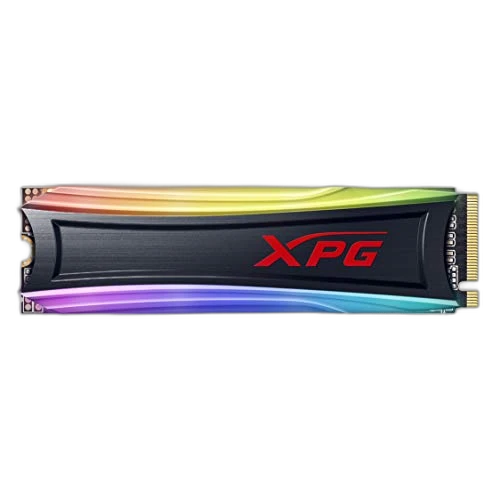

Adata

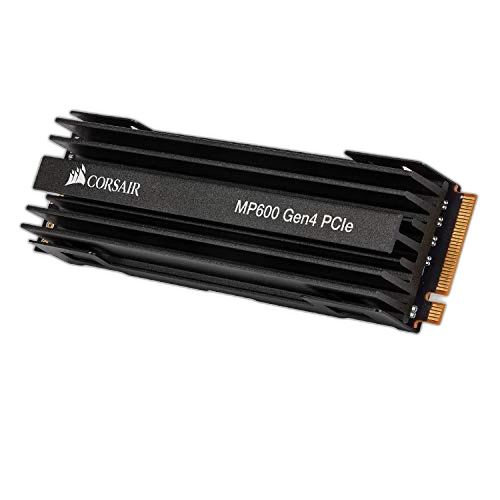

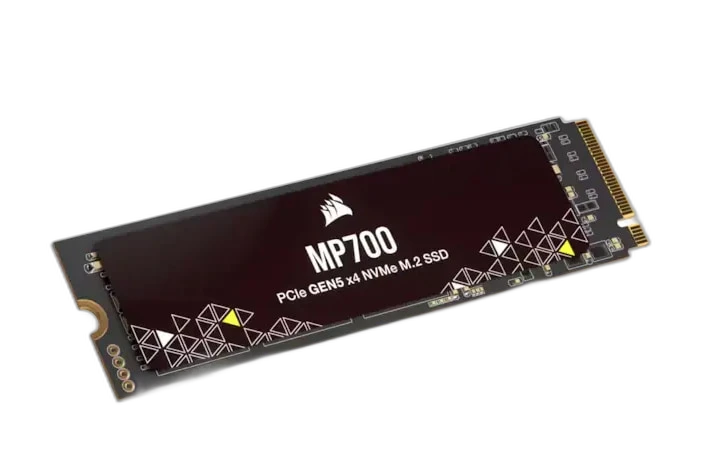

Corsair

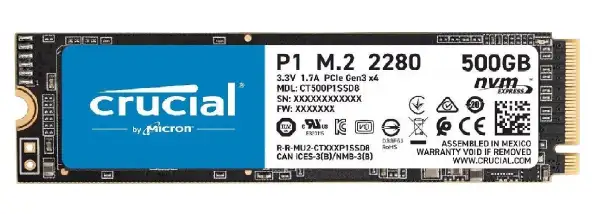

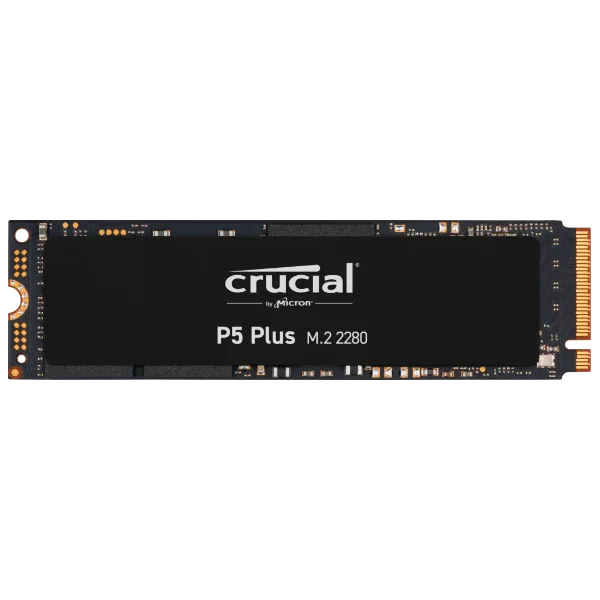

Crucial

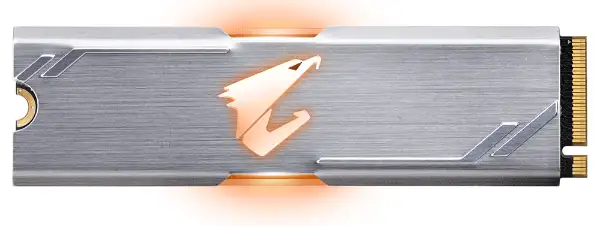

Gigabyte

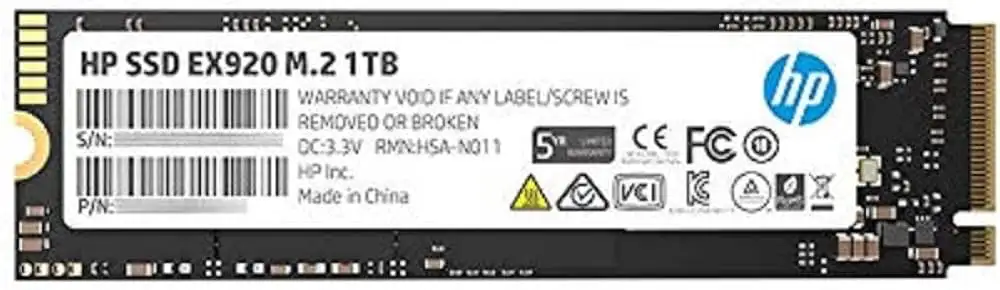

HP

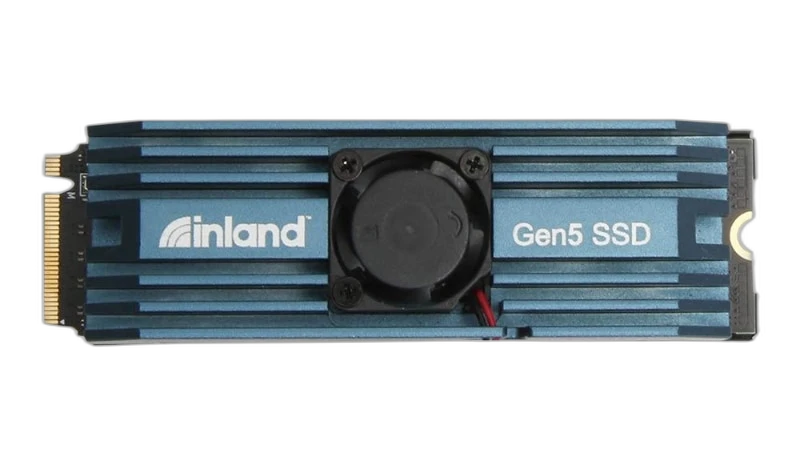

Inland

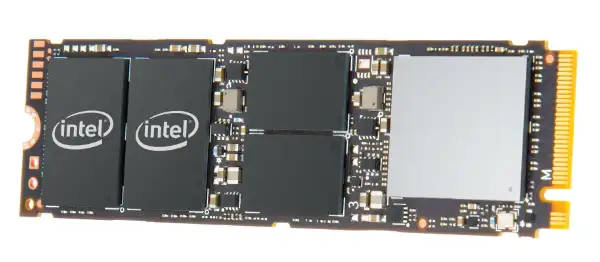

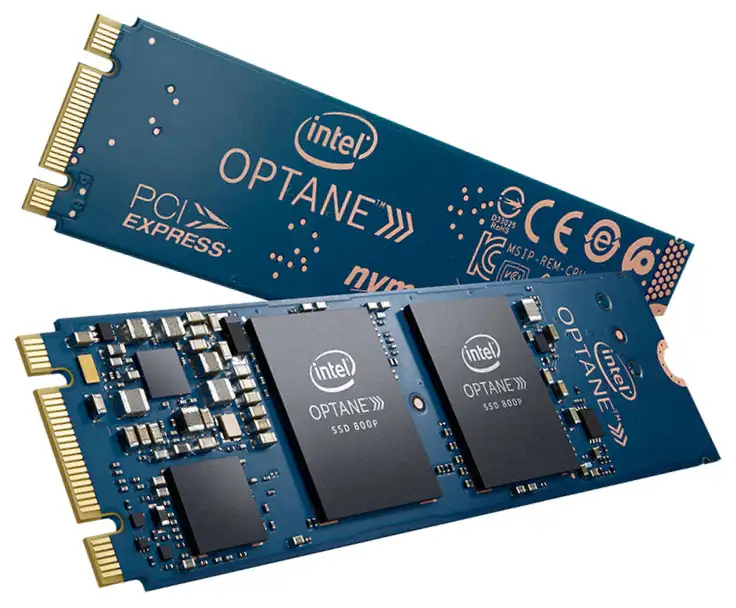

Intel
MSI

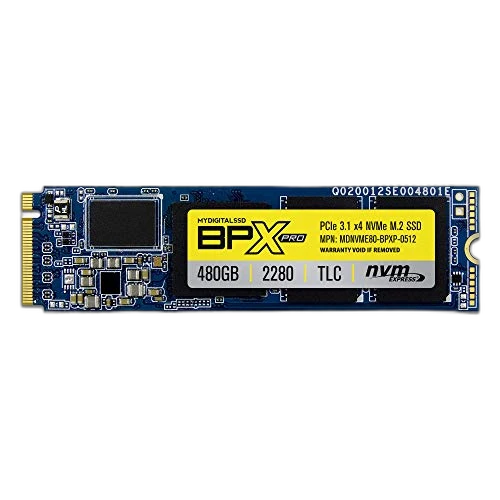

MyDigitalSSD

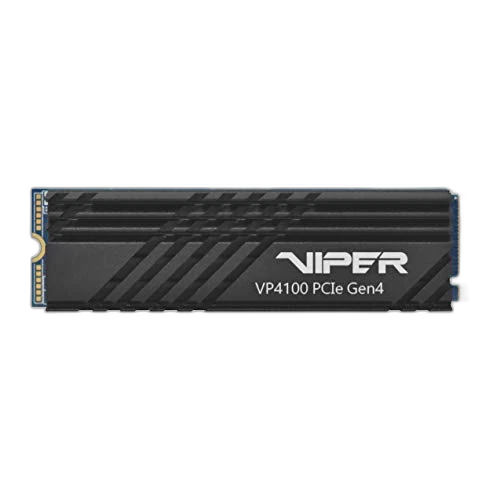

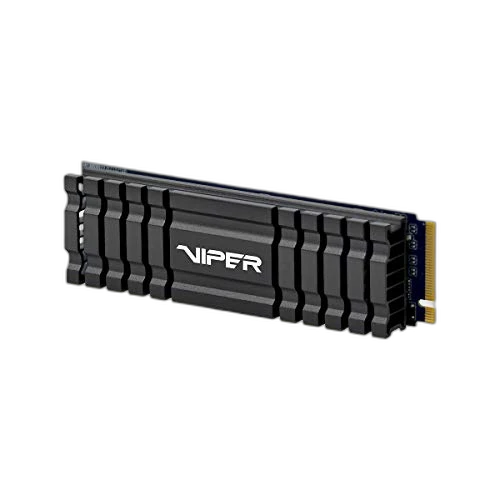

Patriot

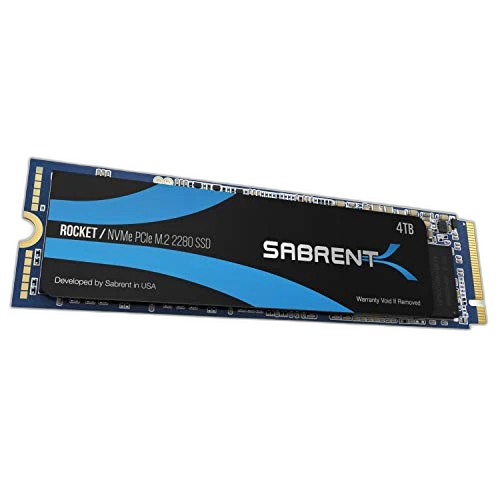

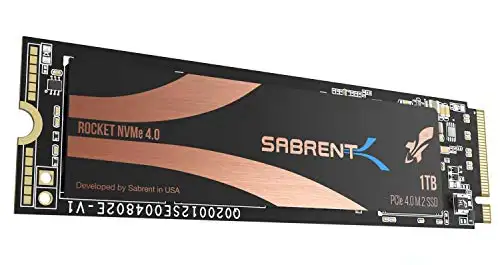

Sabrent
Samsung
-
DrivePM981aPCIe 3.0 x4, NVMe 1.3 · Samsung V-NAND V5256GB, 512GB, 1TB -
DriveSamsung 9100 PROPCIe 5.0 x4, NVMe 2.0 · V-NAND V8 (236L TLC)1TB, 2TB, 4TB, 8TB -
DriveSamsung 950 PROPCIe 3.0 x4, NVMe 1.1 · 32-layer 3D MLC V-NAND512GB, 256GB -
DriveSamsung 960 EVOPCIe 3.0 x4, NVMe 1.2 · 48-layer MLC V-NAND1TB, 500GB, 250GB -
DriveSamsung 960 PROPCIe 3.0 x4, NVMe 1.2 · Samsung 48-layer 2-bit MLC V-NAND512GB, 1TB, 2TB -

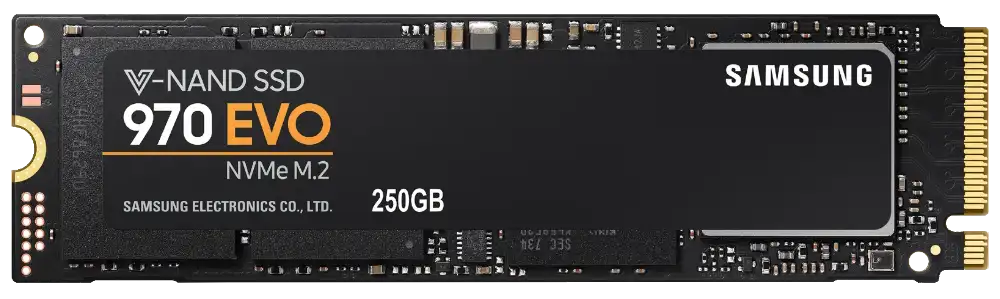

DriveSamsung 970 EVOPCIe 3.0 x4, NVMe 1.3 · Samsung 64-layer 3-bit MLC V-NAND (TLC)500GB -
DriveSamsung 970 EVO PlusPCIe 3.0 x4, NVMe 1.3 · Samsung 96-layer 3-bit MLC V-NAND (TLC)250GB, 500GB, 1TB, 2TB -
DriveSamsung 970 PROPCIe 3.0 x4, NVMe 1.3 · Samsung 64-layer 2-bit MLC V-NAND512GB -

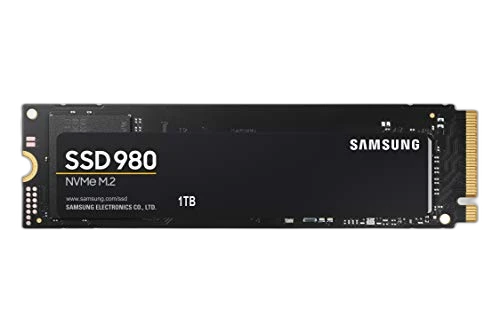

DriveSamsung 980PCIe 3.0 x4, NVMe 1.4 · 128-layer TLC1TB -

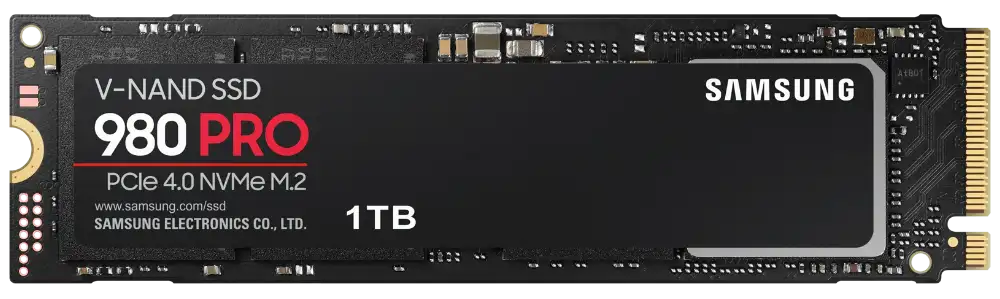

DriveSamsung 980 PROPCIe 4.0 x4, NVMe 1.3 · Samsung 128-layer 3-bit MLC V-NAND (TLC)1TB, 500GB, 250GB -
DriveSamsung 990 EVOPCIe 4.0 x4 / 5.0 x2, NVMe 2.0 · Samsung V-NAND 133L TLC1TB, 2TB -
DriveSamsung 990 EVO PLUSPCIe 4.0 x4 / 5.0 x2, NVMe 2.0 · V-NAND V8 (236L TLC)1TB, 2TB, 4TB -
DriveSamsung 990 PROPCIe 4.0 x4, NVMe 2.0 · 176-layer 3D TLC1TB, 2TB, 4TB -
DriveSamsung SM951PCIe 3.0 x4, NVMe 1.1a · Samsung 16nm MLC512GB

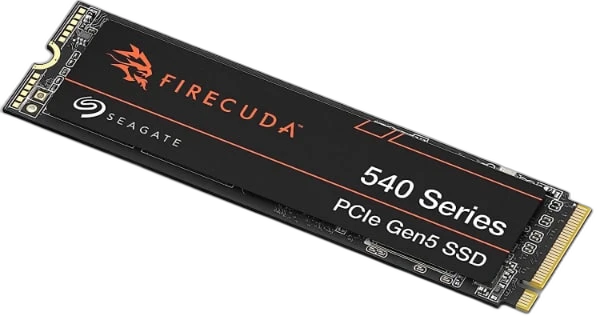

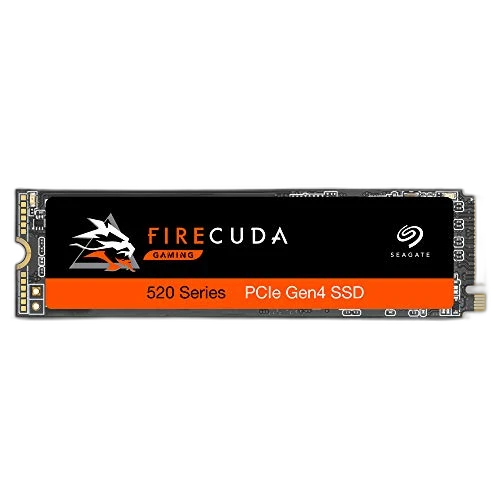

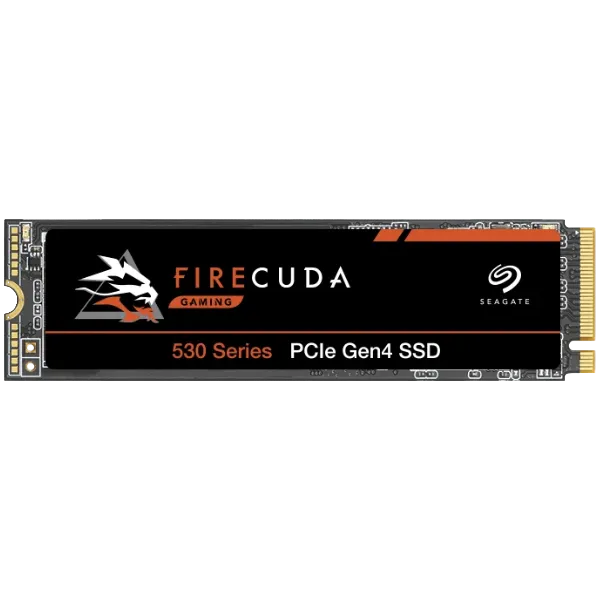

Seagate

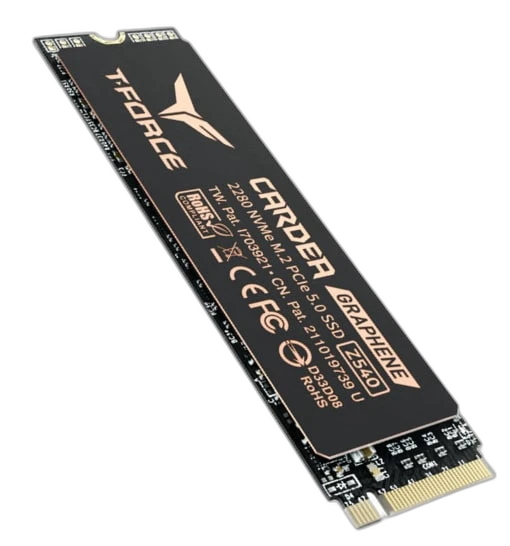

Teamgroup

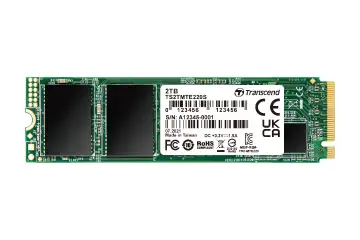

Transcend
Western Digital / SanDisk
-
DriveSanDisk Extreme M.2 NVMe SSD (2023)PCIe 4.0 x4, NVMe 1.4 · Kioxia BiCS5 (112L TLC)*500GB, 1TB, 2TB -
DriveSanDisk Extreme Pro NVMe (2018)PCIe 3.0 x4, NVMe 1.3 · BiCS3 (64L TLC) 533 MT/s500GB, 1TB, 2TB -
DriveSanDisk WD Black SN7100PCIe 4.0 x4, NVMe 2.0 · BiCS8 (218L TLC) 3,600 MT/s500GB, 1TB, 2TB, 4TB -
DriveSanDisk WD Black SN8100PCIe 5.0 x4, NVMe 1.4 · BiCS8 (218L TLC) 3,600 MT/s1TB, 2TB, 4TB -
DriveSanDisk WD Blue SN5100PCIe 4.0 x4, NVMe 1.4 · BiCS8 (218L QLC) 3,600 MT/s500GB, 1TB, 2TB, 4TB -
DriveWD Black 2018PCIe 3.0 x4, NVMe 1.3 · SanDisk/Toshiba 15nm 64-layer 3D TLC250GB, 500GB, 1TB, 512GB -

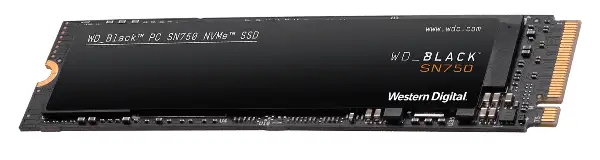

DriveWD Black SN750PCIe 3.0 x4, NVMe 1.3 · Kioxia/SanDisk BiCS3 (64L TLC)250GB, 500GB, 1TB, 2TB -
DriveWD Black SN770PCIe 4.0 x4, NVMe 1.4 · Kioxia BiCS5 (112L TLC)250GB, 500GB, 1TB, 2TB -
DriveWD Blue SN5000PCIe 4.0 x4, NVMe 1.4 · Kioxia BiCS5 (112L TLC)500GB, 1TB, 2TB, 4TB -
DriveWestern Digital PC SN720PCIe 3.0 x4, NVMe 1.3 · Kioxia/SanDisk BiCS3 (64L TLC)256GB, 512GB, 1TB, 2TB -
DriveWestern Digital PC SN730PCIe 3.0 x4, NVMe 1.3 · Kioxia/SanDisk BiCS4 (96L TLC)256GB, 512GB, 1TB -
DriveWestern Digital WD Black SN850PCIe 4.0 x4, NVMe 1.4 · Kioxia/SanDisk BiCS4 (96L TLC)500GB, 1TB, 2TB - DriveWestern Digital WD Black SN850XPCIe 4.0 x4, NVMe 1.4 · Kioxia/SanDisk BiCS5 (112L TLC)1TB, 2TB, 4TB, 8TB
-
DriveWestern Digital WD Blue SN500PCIe 3.0 x2, NVMe 1.3 · BiCS3 (64L TLC)250GB, 500GB -
DriveWestern Digital WD Blue SN550PCIe 3.0 x4, NVMe 1.4 · BiCS4 (96L TLC)250GB, 500GB, 1TB, 2TB -
DriveWestern Digital WD Blue SN570PCIe 3.0 x4, NVMe 1.4 · BiCS5 (112L TLC)250GB, 500GB, 1TB, 2TB -
DriveWestern Digital WD Blue SN580PCIe 4.0 x4, NVMe 1.4b · BiCS5 (112L TLC) 1200 MT/s250GB, 500GB, 1TB, 2TB
